ConstantPath Class Reference

Finds all nodes within a specified distance from the start. More...

Inheritance diagram for ConstantPath:

Collaboration diagram for ConstantPath:

Public Member Functions
	ConstantPath (Vector3 start, OnPathDelegate callbackDelegate)
	Creates a new ConstantPath starting from the specified point.
	ConstantPath (Vector3 start, int maxGScore, OnPathDelegate callbackDelegate)
	Creates a new ConstantPath starting from the specified point.
override void	CalculateStep (long targetTick)
override void	Initialize ()
	Initializes the path.
override void	OnEnterPool ()
	Called when the path enters the pool.
override void	Prepare ()
override void	Reset ()
	Reset the path to default values.
Public Member Functions inherited from Path
void	AdvanceState (PathState s)
	Threadsafe increment of the state.
bool	CanTraverse (Node node)
	Returns if the node can be traversed.
void	Claim (System.Object o)
	Claim this path.
virtual string	DebugString (PathLog logMode)
	Returns a debug string for this path.
void	Error ()
	Aborts the path because of an error.
void	ForceLogError (string msg)
	Logs an error and calls Error() to true.
PathState	GetState ()
	Returns the state of the path in the pathfinding pipeline.
uint	GetTagPenalty (int tag)
	Returns penalty for the given tag.
float	GetTotalLength ()
	Total Length of the path.
bool	IsDone ()
	Returns if this path is done calculating.
void	Log (string msg)
	Appends a message to the errorLog.
void	LogError (string msg)
	Appends msg to errorLog and logs msg to the console.
void	PrepareBase (NodeRunData runData)
	Prepares low level path variables for calculation.
void	Release (System.Object o)
	Releases a path claim.
void	ReleaseSilent (System.Object o)
	Releases the path silently.
virtual void	ReturnPath ()
	Calls callback to return the calculated path.
virtual void	Trace (NodeRun from)
	Traces the calculated path from the end node to the start.

Static Public Member Functions
static ConstantPath	Construct (Vector3 start, int maxGScore, OnPathDelegate callback=null)
	Constructs a ConstantPath starting from the specified point.

Public Attributes
List< Node >	allNodes
	Contains all nodes the path found.
PathEndingCondition	endingCondition
	Controls when the path should terminate.
Vector3	originalStartPoint
Node	startNode
Vector3	startPoint
Public Attributes inherited from Path
OnPathDelegate	callback
	Callback to call when the path is complete.
System.DateTime	callTime
	When the call was made to start the pathfinding for this path.
float	duration
	The duration of this path in ms.
int	enabledTags = -1
	Which graph tags are traversable.
int	height
	Height of the character.
Heuristic	heuristic
	Determines which heuristic to use.
float	heuristicScale = 1F
	Scale of the heuristic values.
Path	next
	The next path to be searched.
NNConstraint	nnConstraint = PathNNConstraint.Default
	Constraint for how to search for nodes.
List< Node >	path
	Holds the path as a Node array.
ushort	pathID
	ID of this path.
int	radius
	Radius for the unit searching for the path.
bool	recycled = false
	True if the path is currently recycled (i.e in the path pool).
NodeRunData	runData
int	searchedNodes
	Number of nodes this path has searched.
int	searchIterations = 0
int	speed
	Speed of the character.
int	turnRadius
	Turning radius of the character.
List< Vector3 >	vectorPath
	Holds the (perhaps post processed) path as a Vector3 array.
int	walkabilityMask = -1
	A mask for defining what type of ground a unit can traverse, not used in any default standard graph.

Protected Member Functions
override void	Recycle ()
	Recycle the path.
void	Setup (Vector3 start, int maxGScore, OnPathDelegate callback)
	Sets up a ConstantPath starting from the specified point.
Protected Member Functions inherited from Path
bool	HasExceededTime (int searchedNodes, long targetTime)

Additional Inherited Members
Protected Attributes inherited from Path
int[]	_tagPenalties = new int[0]
	Penalties for each tag.
NodeRun	currentR
	The node currently being processed.
bool	hasBeenReset = false
	True if the Reset function has been called.
float	maxFrameTime
	The max number of milliseconds per iteration (frame, in case of non-multithreading)
Properties inherited from Path
PathCompleteState	CompleteState [get, set]
bool	error [get]
	If the path failed, this is true.
string	errorLog [get]
	Log messages with info about eventual errors.
int[]	tagPenalties [get, set]
	Penalties for each tag.

Detailed Description

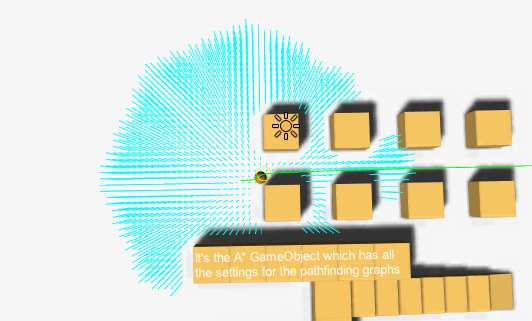

Finds all nodes within a specified distance from the start.

This class will search outwards from the start point and find all nodes which it costs less than ConstantPath::maxGScore to reach, this is usually the same as the distance to them multiplied with 100

The path can be called like:

//Here you create a new path and set how far it should search. Null is for the callback, but the seeker will handle that
ConstantPath cpath = new ConstantPath(transform.position,2000,null);
//Set the seeker to search for the path (where mySeeker is a variable referencing a Seeker component)
mySeeker.StartPath (cpath,myCallbackFunction);

Then when getting the callback, all nodes will be stored in the variable ConstantPath::allNodes (remember that you need to cast it from Path to ConstantPath first to get the variable).

Note

Due to the nature of the system, there might be duplicates of some nodes in the array.

This list will be sorted by G score (cost/distance to reach the node), however only the last duplicate of a node in the list is guaranteed to be sorted in this way.

A* Pro Feature:

This is an A* Pathfinding Project Pro feature only. This function/class/variable might not exist in the Free version of the A* Pathfinding Project or the functionality might be limited
The Pro version can be bought here

Constructor & Destructor Documentation

ConstantPath	(	Vector3	start,
		OnPathDelegate	callbackDelegate
	)

Creates a new ConstantPath starting from the specified point.

Parameters

start	From where the path will be started from (the closest node to that point will be used)
callbackDelegate	Will be called when the path has completed, leave this to null if you use a Seeker to handle calls Searching will be stopped when a node has a G score (cost to reach it) higher than what's specified as default value in Pathfinding::EndingConditionDistance

ConstantPath	(	Vector3	start,
		int	maxGScore,
		OnPathDelegate	callbackDelegate
	)

Creates a new ConstantPath starting from the specified point.

Parameters

start	From where the path will be started from (the closest node to that point will be used)
maxGScore	Searching will be stopped when a node has a G score greater than this
callbackDelegate	Will be called when the path has completed, leave this to null if you use a Seeker to handle calls

Searching will be stopped when a node has a G score (cost to reach it) greater than maxGScore

Member Function Documentation

static ConstantPath Construct ( Vector3  start, int  maxGScore, OnPathDelegate  callback = null  )

static

Constructs a ConstantPath starting from the specified point.

Parameters

start	From where the path will be started from (the closest node to that point will be used)
maxGScore	Searching will be stopped when a node has a G score greater than this
callback	Will be called when the path has completed, leave this to null if you use a Seeker to handle calls

Searching will be stopped when a node has a G score (cost to reach it) greater than maxGScore

Here is the call graph for this function:

Here is the caller graph for this function:

override void Initialize ( )

virtual

Initializes the path.

Sets up the open list and adds the first node to it

Implements Path.

Here is the call graph for this function:

override void OnEnterPool ( )

virtual

Called when the path enters the pool.

This method should release e.g pooled lists and other pooled resources The base version of this method releases vectorPath and path lists. Reset() will be called after this function, not before.

Warning

Do not call this function manually.

Reimplemented from Path.

override void Recycle ( )

protectedvirtual

Recycle the path.

Calling this means that the path and any variables on it are not needed anymore and the path can be pooled. All path data will be reset. Implement this in inheriting path types to support recycling of paths.

public override void Recycle () {
    //Recycle the Path (<Path> should be replaced by the path type it is implemented in)
    PathPool<Path>.Recycle (this);
}

Note

Do not call this function directly, instead use the Claim and Release functions.

See Also

Pathfinding.PathPool

Reset

Claim

Release

Implements Path.

override void Reset ( )

virtual

Reset the path to default values.

Clears the allNodes list.

Note

This does not reset the endingCondition.

Also sets heuristic to Heuristic.None as it is the default value for this path type

Reimplemented from Path.

Member Data Documentation

List<Node> allNodes

Contains all nodes the path found.

Note

Due to the nature of the search, there might be duplicates of some nodes in the array. This list will be sorted by G score (cost/distance to reach the node), however only the last duplicate of a node in the list is guaranteed to be sorted in this way.

PathEndingCondition endingCondition

Controls when the path should terminate.

This is set up automatically in the constructor to an instance of the Pathfinding::EndingConditionDistance class with a maxGScore is specified in the constructor. If you want to use another ending condition.

See Also

Pathfinding::PathEndingCondition for examples

---
