Class Agent Extends IAgent

Agent (

Vector2	pos
float	elevationCoordinate

)

void BufferSwitch ()

Reads public properties and stores them in internal fields.

This is required because multithreading is used and if another script updated the fields at the same time as this class used them in another thread weird things could happen.

Will also set CalculatedTargetPoint and CalculatedSpeed to the result which was last calculated.

void CalculateNeighbours ()

Populate the neighbours and neighbourDists lists with the closest agents to this agent.

void ForceSetVelocity (

Vector2

velocity

)

Set the current velocity of the agent.

This will override the local avoidance input completely. It is useful if you have a player controlled character and want other agents to avoid it.

Calling this method will mark the agent as being externally controlled for 1 simulation step. Local avoidance calculations will be skipped for the next simulation step but will be resumed after that unless this method is called again.

void PostCalculation ()

void PreCalculation ()

void SetCollisionNormal (

Vector2

normal

)

Set the normal of a wall (or something else) the agent is currently colliding with.

This is used to make the RVO system aware of things like physics or an agent being clamped to the navmesh. The velocity of this agent that other agents observe will be modified so that there is no component into the wall. The agent will however not start to avoid the wall, for that you will need to add RVO obstacles.

This value will be cleared after the next simulation step, normally it should be set every frame when the collision is still happening.

void SetTarget (

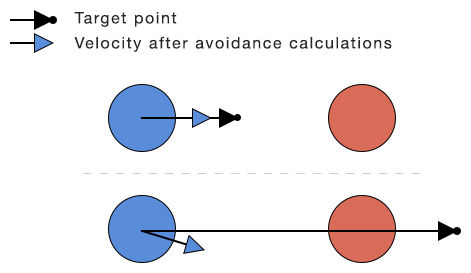

Vector2	targetPoint	Target point in world space (XZ plane or XY plane depending on if the simulation is configured for 2D or 3D). Note that this is a Vector2, not a Vector3 since the system simulates everything internally in 2D. So if your agents move in the XZ plane you will have to supply it as a Vector2 with (x,z) coordinates.
float	desiredSpeed	Desired speed of the agent. In world units per second. The agent will try to move with this speed if possible.
float	maxSpeed	Max speed of the agent. In world units per second. If necessary (for example if another agent is on a collision trajectory towards this agent) the agent can move at this speed. Should be at least as high as desiredSpeed, but it is recommended to use a slightly higher value than desiredSpeed (for example desiredSpeed*1.2).

)

Point towards which the agent should move.

Usually you set this once per frame. The agent will try move as close to the target point as possible. Will take effect at the next simulation step.

float AgentTimeHorizon

Max number of estimated seconds to look into the future for collisions with agents.

As it turns out, this variable is also very good for controling agent avoidance priorities. Agents with lower values will avoid other agents less and thus you can make 'high priority agents' by giving them a lower value.

float CalculatedSpeed

Optimal speed of the agent to avoid collisions.

The movement script should move towards CalculatedTargetPoint with this speed.

Vector2 CalculatedTargetPoint

Optimal point to move towards to avoid collisions.

The movement script should move towards this point with a speed of CalculatedSpeed.

RVOLayer CollidesWith

Layer mask specifying which layers this agent will avoid.

You can set it as CollidesWith = RVOLayer.DefaultAgent | RVOLayer.Layer3 | RVOLayer.Layer6 ...

bool DebugDraw

Draw debug information.

float ElevationCoordinate

Coordinate which separates characters in the height direction.

Since RVO can be used either in 2D or 3D, it is not as simple as just using the y coordinate of the 3D position. In 3D this will most likely be set to the y coordinate, but in 2D (top down) it should in most cases be set to 0 since all characters are always in the same plane, however it may be set to some other value, for example if the game is 2D isometric.

The position is assumed to be at the base of the character (near the feet).

float Height

Height of the agent in world units.

Agents are modelled as circles/cylinders.

RVOLayer Layer

Specifies the avoidance layer for this agent.

The CollidesWith mask on other agents will determine if they will avoid this agent.

bool Locked

Locked agents will be assumed not to move.

int MaxNeighbours

Max number of agents to take into account.

Decreasing this value can lead to better performance, increasing it can lead to better quality of the simulation.

int NeighbourCount

Number of neighbours that the agent took into account during the last simulation step.

List<ObstacleVertex> NeighbourObstacles

float ObstacleTimeHorizon

Max number of estimated seconds to look into the future for collisions with obstacles.

Vector2 Position

Position of the agent.

The agent does not move by itself, a movement script has to be responsible for reading the CalculatedTargetPoint and CalculatedSpeed properties and move towards that point with that speed. This property should ideally be set every frame.

Note that this is a Vector2, not a Vector3 since the RVO simulates everything internally in 2D. So if your agents move in the XZ plane you may have to convert it to a Vector3 like this.

Vector3 position3D = new Vector3(agent.Position.x, agent.ElevationCoordinate, agent.Position.y);


System.Action PreCalculationCallback

Callback which will be called right before avoidance calculations are started.

Used to update the other properties with the most up to date values

float Priority

How strongly other agents will avoid this agent.

Usually a value between 0 and 1. Agents with similar priorities will avoid each other with an equal strength. If an agent sees another agent with a higher priority than itself it will avoid that agent more strongly. In the extreme case (e.g this agent has a priority of 0 and the other agent has a priority of 1) it will treat the other agent as being a moving obstacle. Similarly if an agent sees another agent with a lower priority than itself it will avoid that agent less.

In general the avoidance strength for this agent is: if this.priority > 0 or other.priority > 0:
avoidanceStrength = other.priority / (this.priority + other.priority);
else:
avoidanceStrength = 0.5


float Radius

Radius of the agent in world units.

Agents are modelled as circles/cylinders.

float agentTimeHorizon

bool BiasDesiredVelocity (

VOBuffer	vos
ref Vector2	desiredVelocity
ref Vector2	targetPointInVelocitySpace
float	maxBiasRadians

)

Bias towards the right side of agents.

Rotate desiredVelocity at most [value] number of radians. 1 radian ≈ 57° This breaks up symmetries.

The desired velocity will only be rotated if it is inside a velocity obstacle (VO). If it is inside one, it will not be rotated further than to the edge of it

The targetPointInVelocitySpace will be rotated by the same amount as the desired velocity

float calculatedSpeed

Vector2 calculatedTargetPoint

void CalculateVelocity (

Pathfinding.RVO.Simulator.WorkerContext

context

)

RVOLayer collidesWith

Vector2 collisionNormal

Vector2 currentVelocity

bool debugDraw

float desiredSpeed

Vector2 desiredTargetPointInVelocitySpace

Desired target point - position.

Vector2 desiredVelocity

const float DesiredVelocityWeight = 0.1f

void DrawVO (

Vector2	circleCenter
float	radius
Vector2	origin

)

float elevationCoordinate

Vector2 EvaluateGradient (

VOBuffer	vos
Vector2	p
out float	value

)

Evaluate gradient and value of the cost function at velocity p.

Vector3 FromXZ (

Vector2

p

)

(x, 0, y)

void GenerateNeighbourAgentVOs (

VOBuffer

vos

)

void GenerateObstacleVOs (

VOBuffer

vos

)

Vector2 GradientDescent (

VOBuffer	vos
Vector2	sampleAround1
Vector2	sampleAround2

)

float height

float InsertAgentNeighbour (

Agent	agent
float	rangeSq

)

Used by the Quadtree.

RVOLayer layer

bool locked = false

bool manuallyControlled

int maxNeighbours

float maxSpeed

List<float> neighbourDists = new List<float>()

List<Agent> neighbours = new List<Agent>()

Agent next

Used internally for a linked list.

float nextDesiredSpeed

float nextMaxSpeed

Vector2 nextTargetPoint

List<ObstacleVertex> obstacles = new List<ObstacleVertex>()

List<ObstacleVertex> obstaclesBuffered = new List<ObstacleVertex>()

float obstacleTimeHorizon

Vector2 position

float radius

Color Rainbow (

float

v

)

Simulator simulator

Simulator which handles this agent.

Used by this script as a reference and to prevent adding this agent to multiple simulations.

float Sqr (

float

x

)

Square a number.

Vector2 To2D (

Vector3	p
out float	elevation

)

Converts a 3D vector to a 2D vector in the movement plane.

If movementPlane is XZ it will be projected onto the XZ plane and the elevation coordinate will be the Y coordinate otherwise it will be projected onto the XY plane and elevation will be the Z coordinate.

Vector2 ToXZ (

Vector3

p

)

(x, z)

Vector2 Trace (

VOBuffer	vos
Vector2	p
out float	score

)

Traces the vector field constructed out of the velocity obstacles.

Returns the position which gives the minimum score (approximately).

const float WallWeight = 5

Extra weight that walls will have.
