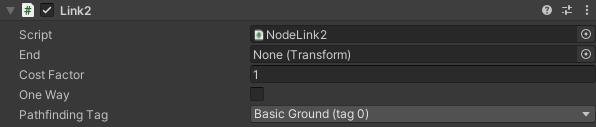

Class NodeLink2 Extends GraphModifier

void Apply (

bool

forceNewCheck

)

Connects the start and end points using a link or refreshes the existing link.

If you have moved the link or otherwise modified it you need to call this method.

void DrawGizmos ()

void OnGraphsPostUpdateBeforeAreaRecalculation ()

Called after graphs have been updated.

This is among other times called after graphs have been scanned, updated using GraphUpdateObjects, navmesh cuts, or GraphUpdateScene components.

Use this if you are modifying any graph connections or walkability.

NodeLink2 GetNodeLink (

GraphNode

node

)

GraphNode EndNode

Transform EndTransform

GraphNode StartNode

Transform StartTransform

float costFactor = 1.0f

The connection will be this times harder/slower to traverse.

Note that values lower than 1 will not always make the pathfinder choose this path instead of another path even though this one should lead to a lower total cost unless you also adjust the Heuristic Scale in A* Inspector -> Settings -> Pathfinding or disable the heuristic altogether.

Transform end

End position of the link.

PointNode endNode

bool oneWay = false

Make a one-way connection.

PathfindingTag pathfindingTag = 0

The tag to apply to the link.

This can be used to exclude certain agents from using the link, or make it more expensive to use.

PointNode startNode

EventType

GraphModifier event type.

void FindAllModifiers ()

void OnGraphsPostUpdate ()

Called after graphs have been updated using GraphUpdateObjects or navmesh cutting.

This is among other times called after graphs have been scanned, updated using GraphUpdateObjects, navmesh cuts, or GraphUpdateScene components.

Area recalculations (see HierarchicalGraph) have been done at this stage so things like PathUtilities.IsPathPossible will work.

Use OnGraphsPostUpdateBeforeAreaRecalculation instead if you are modifying the graph in any way, especially connections and walkability. This is because if you do this then area recalculations

void OnGraphsPreUpdate ()

Called before graphs are updated using GraphUpdateObjects.

void OnLatePostScan ()

Called at the end of the scanning procedure.

This is the absolute last thing done by Scan.

void OnPostCacheLoad ()

Called after cached graphs have been loaded.

When using cached startup, this event is analogous to OnLatePostScan and implementing scripts should do roughly the same thing for both events.

void OnPostGraphLoad ()

Called after a graph has been deserialized and loaded.

This will be called often outside of play mode. Make sure to check Application.isPlaying if appropriate.

void OnPostScan ()

Called right after all graphs have been scanned.

void OnPreScan ()

Called right before graphs are going to be scanned.

void TriggerEvent (

GraphModifier.EventType

type

)

Triggers an event for all active graph modifiers.

void Awake ()

void ContextApplyForce ()

void CreateLinkNodes ()

void DeserializeReferences (

Pathfinding.Serialization.GraphSerializationContext

ctx

)

GraphNode GetConnectedNode (

GraphNode

linkNode

)

List<T> GetModifiersOfType<T> ()

Color GizmosColor = new Color(206.0f/255.0f, 136.0f/255.0f, 48.0f/255.0f, 0.5f)

Color GizmosColorSelected = new Color(235.0f/255.0f, 123.0f/255.0f, 32.0f/255.0f, 1.0f)

void OnDestroy ()

void OnDisable ()

Removes this modifier from list of active modifiers.

void OnEnable ()

Adds this modifier to list of active modifiers.

void OnUpgradeSerializedData (

refMigrations	migrations
bool	unityThread

)

Handle serialization backwards compatibility.

void RemoveConnections (

GraphNode

node

)

void Reset ()

Handle serialization backwards compatibility.

void SerializeReferences (

Pathfinding.Serialization.GraphSerializationContext

ctx

)

void UpgradeSerializedData (

bool

isUnityThread

)

Vector3 clamped1

Vector3 clamped2

GraphNode connectedNode1

GraphNode connectedNode2

bool linkCreated = false

Dictionary<GraphNode,NodeLink2> reference = new Dictionary<GraphNode, NodeLink2>()

ulong uniqueID

Unique persistent ID for this component, used for serialization.

Dictionary<ulong,GraphModifier> usedIDs = new Dictionary<ulong, GraphModifier>()

Maps persistent IDs to the component that uses it.
