Implements the funnel algorithm as well as various related methods.
More...
Implements the funnel algorithm as well as various related methods.
 See Also
 http://digestingduck.blogspot.se/2010/03/simplestupidfunnelalgorithm.html

FunnelModifier for the component that you can attach to objects to use the funnel algorithm.

static Vector3  FromXZ (Vector2 p)

static bool  LeftOrColinear (Vector2 a, Vector2 b)
 True if b is to the left of or on the line from (0,0) to a.


static bool  RightOrColinear (Vector2 a, Vector2 b)
 True if b is to the right of or on the line from (0,0) to a.


static Vector2  ToXZ (Vector3 p)


static void  Calculate (Vector2[] left, Vector2[] right, int startIndex, List< int > funnelPath, int maxCorners, out bool lastCorner)
 Funnel algorithm.


static int  FixFunnel (ref Vector2[] left, ref Vector2[] right)
 Try to fix degenerate or invalid funnels.


static bool  UnwrapHelper (Vector3 portalStart, Vector3 portalEnd, Vector3 prevPoint, Vector3 nextPoint, ref Quaternion mRot, ref Vector3 mOffset)

static List<Vector3> Calculate
(
FunnelPortals
funnel,


bool
unwrap,


bool
splitAtEveryPortal

)


static
Calculate the shortest path through the funnel.
 Parameters

funnel  The portals of the funnel. The first and last vertices portals must be single points (so for example left[0] == right[0]).
unwrap  Determines if twists and bends should be straightened out before running the funnel algorithm.
splitAtEveryPortal  If true, then a vertex will be inserted every time the path crosses a portal instead of only at the corners of the path. The result will have exactly one vertex per portal if this is enabled. This may introduce vertices with the same position in the output (esp. in corners where many portals meet).
If the unwrap option is disabled the funnel will simply be projected onto the XZ plane. If the unwrap option is enabled then the funnel may be oriented arbitrarily and may have twists and bends. This makes it possible to support the funnel algorithm in XY space as well as in more complicated cases, such as on curved worlds.
 See Also
 Unwrap
static void Calculate
(
Vector2[]
left,


Vector2[]
right,


int
startIndex,


List< int >
funnelPath,


int
maxCorners,


out bool
lastCorner

)


staticprivate
Funnel algorithm.
funnelPath will be filled with the result. The result is the indices of the vertices that were picked, a nonnegative value refers to the corresponding index in the left array, a negative value refers to the corresponding index in the right array. So e.g 5 corresponds to left[5] and 2 corresponds to right[2]
 See Also
 http://digestingduck.blogspot.se/2010/03/simplestupidfunnelalgorithm.html
static int FixFunnel
(
ref Vector2[]
left,


ref Vector2[]
right

)


staticprivate
Try to fix degenerate or invalid funnels.
 Returns
 The number of vertices at the start of both arrays that should be ignored or 1 if the algorithm failed.
static Vector3 FromXZ
(
Vector2
p  )


staticprotected
static bool LeftOrColinear
(
Vector2
a,


Vector2
b

)


staticprotected
True if b is to the left of or on the line from (0,0) to a.
static bool RightOrColinear
(
Vector2
a,


Vector2
b

)


staticprotected
True if b is to the right of or on the line from (0,0) to a.
static void ShrinkPortals
(
FunnelPortals
portals,


float
shrink

)


static
static Vector2 ToXZ
(
Vector3
p  )


staticprotected
static void Unwrap
(
FunnelPortals
funnel,


Vector2[]
left,


Vector2[]
right

)


static
Unwraps the funnel portals from 3D space to 2D space.
The result is stored in the left and right arrays which must have lengths equal to the funnel.left and funnel.right lists.

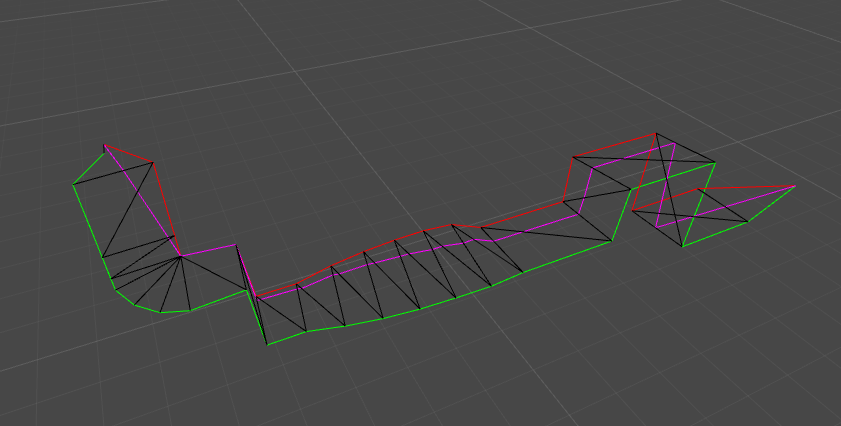

The input is a funnel like in the image below. It may be rotated and twisted.

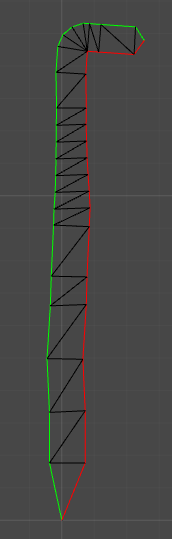

The output will be a funnel in 2D space like in the image below. All twists and bends will have been straightened out.
 See Also
 Calculate(FunnelPortals,bool,bool)
static bool UnwrapHelper
(
Vector3
portalStart,


Vector3
portalEnd,


Vector3
prevPoint,


Vector3
nextPoint,


ref Quaternion
mRot,


ref Vector3
mOffset

)


staticprivate
The documentation for this class was generated from the following file:
 /Users/arong/Unity/apathfindingproject/Assets/AstarPathfindingProject/Utilities/Funnel.cs
