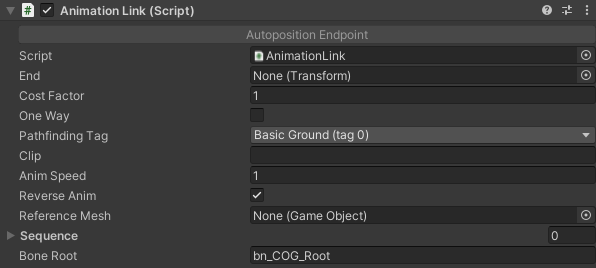

Class AnimationLink Extends NodeLink2

void CalculateOffsets (

List<Vector3>	trace
out Vector3	endPosition

)

void DrawGizmos ()

float animSpeed = 1

string boneRoot = "bn_COG_Root"

string clip

GameObject referenceMesh

bool reverseAnim = true

LinkClip[] sequence

void Apply ()

Disconnects and then reconnects the link to the graph.

If you have moved the link or otherwise modified it you need to call this method to apply those changes.

void DrawGizmos ()

Transform EndTransform

EventType

GraphModifier event type.

void FindAllModifiers ()

NodeLink2 GetNodeLink (

GraphNode

node

The node to get the link for.

)

Returns the link component associated with the specified node.

void OnGraphsPostUpdate ()

Called after graphs have been updated using GraphUpdateObjects or navmesh cutting.

This is among other times called after graphs have been scanned, updated using GraphUpdateObjects, navmesh cuts, or GraphUpdateScene components.

Area recalculations (see HierarchicalGraph) have been done at this stage so things like PathUtilities.IsPathPossible will work.

Use OnGraphsPostUpdateBeforeAreaRecalculation instead if you are modifying the graph in any way, especially connections and walkability. This is because if you do this then area recalculations

void OnGraphsPostUpdateBeforeAreaRecalculation ()

Called after graphs have been updated.

This is among other times called after graphs have been scanned, updated using GraphUpdateObjects, navmesh cuts, or GraphUpdateScene components.

Use this if you are modifying any graph connections or walkability.

void OnGraphsPreUpdate ()

Called before graphs are updated using GraphUpdateObjects.

void OnLatePostScan ()

Called at the end of the scanning procedure.

This is the absolute last thing done by Scan.

void OnPostCacheLoad ()

Called after cached graphs have been loaded.

When using cached startup, this event is analogous to OnLatePostScan and implementing scripts should do roughly the same thing for both events.

void OnPostGraphLoad ()

Called after a graph has been deserialized and loaded.

This will be called often outside of play mode. Make sure to check Application.isPlaying if appropriate.

void OnPostScan ()

Called right after all graphs have been scanned.

void OnPreScan ()

Called right before graphs are going to be scanned.

Transform StartTransform

void TriggerEvent (

GraphModifier.EventType

type

)

Triggers an event for all active graph modifiers.

float costFactor = 1.0f

The connection will be this times harder/slower to traverse.

Note that values lower than 1 will not always make the pathfinder choose this path instead of another path, even though this one should lead to a lower total cost, unless you also adjust the Heuristic Scale in A* Inspector -> Settings -> Pathfinding or disable the heuristic altogether. Read more about this at https://en.wikipedia.org/wiki/Admissible_heuristic.

Transform end

End position of the link.

bool oneWay = false

Make a one-way connection.

PathfindingTag pathfindingTag = 0

The tag to apply to the link.

This can be used to exclude certain agents from using the link, or make it more expensive to use.

void Awake ()

List<T> GetModifiersOfType<T> ()

void OnDestroy ()

void OnDisable ()

Removes this modifier from list of active modifiers.

void OnEnable ()

Adds this modifier to list of active modifiers.

void OnUpgradeSerializedData (

refMigrations	migrations
bool	unityThread

)

Handle serialization backwards compatibility.

void Reset ()

Handle serialization backwards compatibility.

Transform SearchRec (

Transform	tr
string	name

)

void UpgradeSerializedData (

bool

isUnityThread

)

OffMeshLinks.OffMeshLinkSource linkSource

ulong uniqueID

Unique persistent ID for this component, used for serialization.

Dictionary<ulong,GraphModifier> usedIDs = new Dictionary<ulong, GraphModifier>()

Maps persistent IDs to the component that uses it.
