NodeLink Class Reference

Connects two nodes with a direct connection. More...

Detailed Description

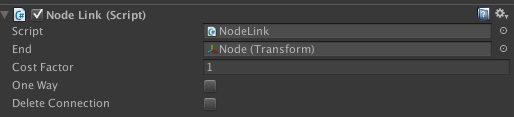

Connects two nodes with a direct connection.

It is not possible to detect this link when following a path (which may be good or bad), for that you can use NodeLink2.

See also
Editing graph connections manually

Public Member Functions

virtual void Apply ()
 Connects the start and end points using a link or refreshes the existing link. More...

void OnDrawGizmos ()

override void OnGraphsPostUpdateBeforeAreaRecalculation ()
 Called after graphs have been updated. More...

- Public Member Functions inherited from GraphModifier
virtual void OnGraphsPostUpdate ()
 Called after graphs have been updated using GraphUpdateObjects or navmesh cutting. More...

virtual void OnGraphsPreUpdate ()
 Called before graphs are updated using GraphUpdateObjects. More...

virtual void OnLatePostScan ()
 Called at the end of the scanning procedure. More...

virtual void OnPostCacheLoad ()
 Called after cached graphs have been loaded. More...

virtual void OnPostGraphLoad ()
 Called after a graph has been deserialized and loaded. More...

virtual void OnPostScan ()
 Called right after all graphs have been scanned. More...

virtual void OnPreScan ()
 Called right before graphs are going to be scanned. More...


Public Attributes

float costFactor = 1.0f
 The connection will be this times harder/slower to traverse. More...

bool deleteConnection = false
 Delete existing connection instead of adding one. More...

Transform end
 End position of the link. More...

bool oneWay = false
 Make a one-way connection. More...


Properties

Transform End [get]

Transform Start [get]

- Properties inherited from VersionedMonoBehaviour
int Util.IEntityIndex. EntityIndex [get, set]
 Internal entity index used by #BurstBatchHelper. More...

- Properties inherited from IEntityIndex
int EntityIndex [get, set]


Additional Inherited Members

- Public Types inherited from GraphModifier
enum  EventType {
  PostScan = 1 << 0, PreScan = 1 << 1, LatePostScan = 1 << 2, PreUpdate = 1 << 3,
  PostUpdate = 1 << 4, PostCacheLoad = 1 << 5, PostUpdateBeforeAreaRecalculation = 1 << 6, PostGraphLoad = 1 << 7
}
 GraphModifier event type. More...

- Static Public Member Functions inherited from GraphModifier
static void FindAllModifiers ()

static void TriggerEvent (GraphModifier.EventType type)
 Triggers an event for all active graph modifiers. More...

- Protected Member Functions inherited from GraphModifier
override void Awake ()

virtual void OnDestroy ()

virtual void OnDisable ()
 Removes this modifier from list of active modifiers. More...

virtual void OnEnable ()
 Adds this modifier to list of active modifiers. More...

override void Reset ()
 Handle serialization backwards compatibility. More...

- Protected Member Functions inherited from VersionedMonoBehaviour
virtual int OnUpgradeSerializedData (int version, bool unityThread)
 Handle serialization backwards compatibility. More...

- Static Protected Member Functions inherited from GraphModifier
static List< T > GetModifiersOfType< T > ()

- Protected Attributes inherited from GraphModifier
ulong uniqueID
 Unique persistent ID for this component, used for serialization. More...

- Static Protected Attributes inherited from GraphModifier
static Dictionary< ulong, GraphModifierusedIDs = new Dictionary<ulong, GraphModifier>()
 Maps persistent IDs to the component that uses it. More...


Member Function Documentation

◆ Apply()

virtual void Apply ( )
virtual

Connects the start and end points using a link or refreshes the existing link.

If you have moved the link or otherwise modified it you need to call this method.

Warning
This must only be done when it is safe to update the graph structure. The easiest is to do it inside a work item. See #AstarPath.active.AddWorkItem.

◆ OnDrawGizmos()

void OnDrawGizmos ( )

◆ OnGraphsPostUpdateBeforeAreaRecalculation()

override void OnGraphsPostUpdateBeforeAreaRecalculation ( )
virtual

Called after graphs have been updated.

This is among other times called after graphs have been scanned, updated using GraphUpdateObjects, navmesh cuts, or GraphUpdateScene components.

Note
Area information (see Pathfinding.HierarchicalGraph) may not be up to date when this event is sent. This means some methods like Pathfinding.PathUtilities.IsPathPossible may return incorrect results. Use OnLatePostScan if you need that info to be up to date.

Use this if you are modifying any graph connections or walkability.

See also
OnGraphsPostUpdate

Reimplemented from GraphModifier.

Member Data Documentation

◆ costFactor

float costFactor = 1.0f

The connection will be this times harder/slower to traverse.

Note that values lower than one will not always make the pathfinder choose this path instead of another path even though this one should lead to a lower total cost unless you also adjust the Heuristic Scale in A* Inspector -> Settings -> Pathfinding or disable the heuristic altogether.

◆ deleteConnection

bool deleteConnection = false

Delete existing connection instead of adding one.

◆ end

Transform end

End position of the link.

◆ oneWay

bool oneWay = false

Make a one-way connection.

Property Documentation

◆ End

Transform End
get

◆ Start

Transform Start
get
