Tutorial on how to use pathfinding on non-planar surfaces.

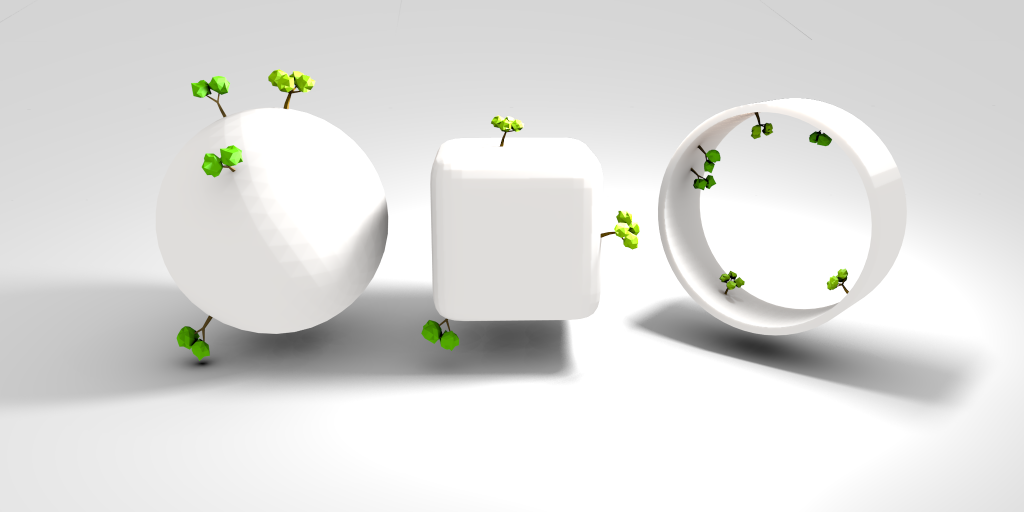

In some games, you may need to use pathfinding and local avoidance on surfaces like planets or rings that do not always have the same direction as 'up'. In the image below you can see a few example shapes of worlds. However you can make them as crazy as you'd like (almost, see below for some tips).
In the package you can find an example scene called "Spherical" which shows an example of how one can configure pathfinding and local avoidance for a spherical world.
Configuring a graph
Both navmesh graphs and point graphs can be used. However for most purposes navmesh graphs are recommended. The way you set them up is pretty much identical to how it's done in the navmesh tutorial (see Creating a navmesh manually) with the difference that instead of a planar surface, you create for example a sphere.

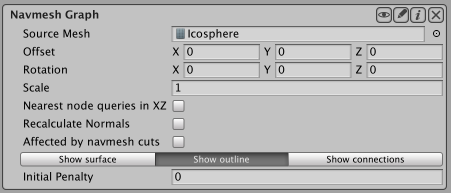

You should make sure that 'Recalculate Normals' is disabled in the navmesh graph settings. If that is left enabled, then normals will be recalculated assuming that the Y+ axis is up, which in this case it will not be everywhere.
For moving characters across a curved surface you can either use a custom movement script, or you can use the included AIPathAlignedToSurface component. The AIPathAlignedToSurface script inherits from AIPath and it changes a few things to make it more suitable for a curved surface. Firstly it uses the normal of the ground below it to align itself to the surface. Secondly it makes the gravity be relative to character's up direction instead of the world's up direction. So if you for example set the gravity to (0, -10, 0) the character will be pulled downwards towards the surface it is standing on, even if it is on the bottom side of say a sphere.
If you use a mesh collider as ground, the AIPathAlignedToSurface script will try to interpolate the surface normal to make movement across it much smoother. This will however only work if the mesh used for the collider is readable. So make sure you check the 'Read/Write Enabled' checkbox in the mesh asset importer.
Local avoidance is supported on curved surfaces out of the box. The only thing you need to do is to, as usual, add an RVOSimulator to the scene and an RVOController to your agent (see Local Avoidance for more info about this) and then you have to set the movement plane option on the RVOSimulator to 'Arbitrary'. The AIPathAlignedToSurface script takes care of informing the RVOController about the orientation of the surface it is standing on. If you are writing your own movement script you will have to set the RVOController.movementPlane property to update the orientation.
Tips for good non-planar navmeshes

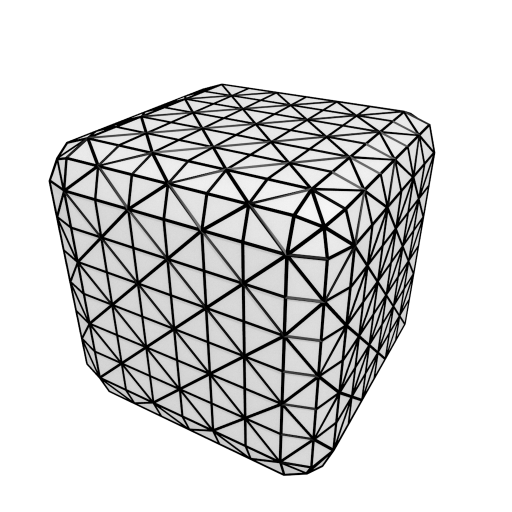

A good navmesh should have roughly equally sized triangles which are not too small (as that will cause pathfinding to be unecessarily slow as it has to search more nodes) or too large (as that will reduce the precision too much). If you use the built-in movement scripts you should try to avoid very drastic surface changes as then movement across the edge may look pretty bad. E.g use a rounded cube instead of a normal cube.

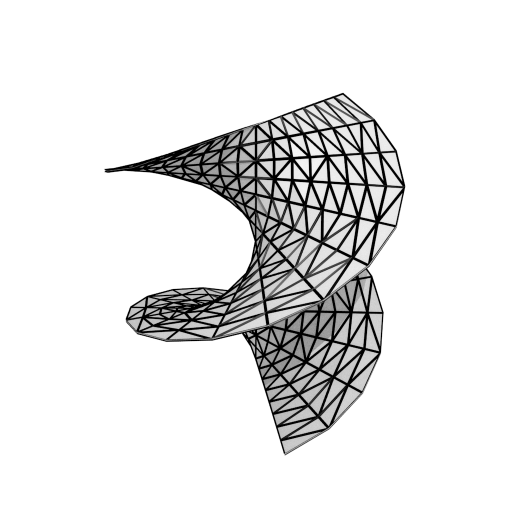

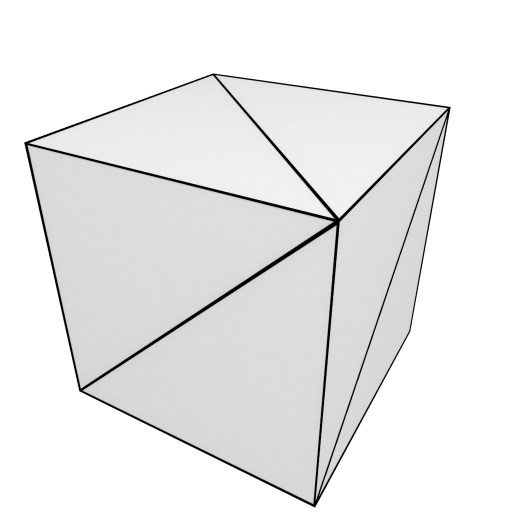

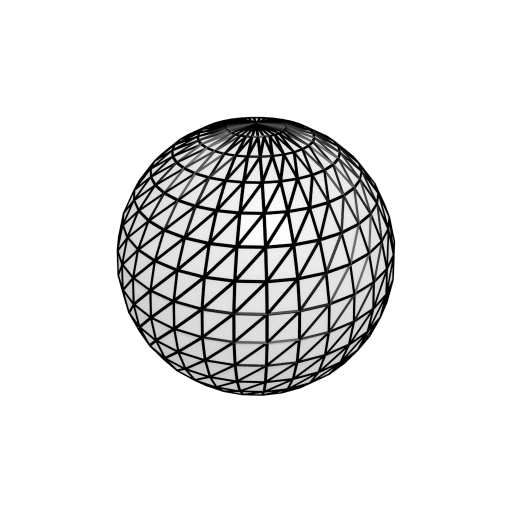

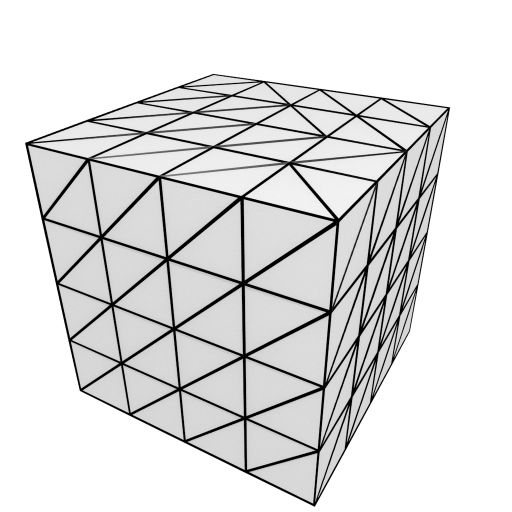

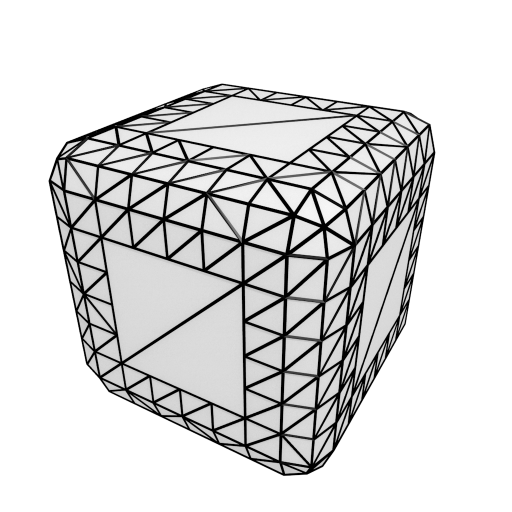

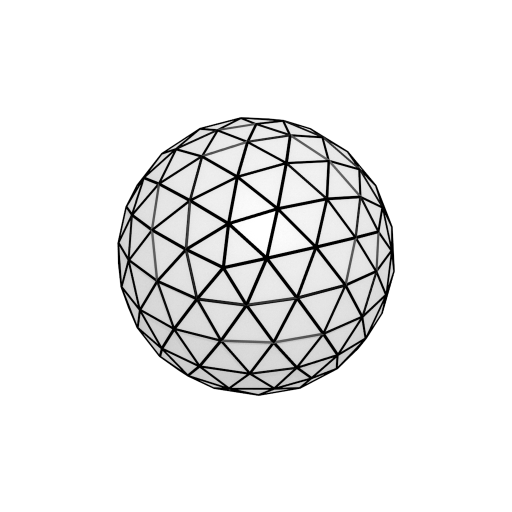

Below you can see some examples of good and bad navmeshes. These are of course very simple example navmeshes, but hopefully the general idea of what to avoid should come across.
