Class ProceduralGraphMover Extends VersionedMonoBehaviour

Public

Moves a grid or recast graph to follow a target.

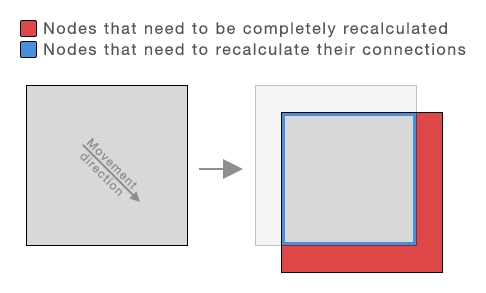

This is useful if you have a very large, or even infinite, world, but pathfinding is only necessary in a small region around an object (for example the player). This component will move a graph around so that its center stays close to the target object.

Note

This component can only be used with grid graphs, layered grid graphs and (tiled) recast graphs.

Usage
Take a look at the example scene called "Procedural" for an example of how to use this script

Attach this to some object in the scene and assign the target to e.g the player. Then the graph will follow that object around as it moves.

Performance
When the graph is moved you may notice an fps drop. If this grows too large you can try a few things:

General advice:

  • Turn on multithreading (A* Inspector -> Settings)

  • Make sure you have 'Show Graphs' disabled in the A* inspector, since gizmos in the scene view can take some time to update when the graph moves, and thus make it seem like this script is slower than it actually is.

For grid graphs:

  • Avoid using any erosion in the grid graph settings. This is relatively slow. Each erosion iteration requires expanding the region that is updated by 1 node.

  • Reduce the grid size or resolution.

  • Reduce the updateDistance. This will make the updates smaller but more frequent. This only works to some degree however since an update has an inherent overhead.

  • Disable Height Testing or Collision Testing in the grid graph if you can. This can give a performance boost since fewer calls to the physics engine need to be done.

For recast graphs:

  • Rasterize colliders instead of meshes. This is typically faster.

  • Use a reasonable tile size. Very small tiles can cause more overhead, and too large tiles might mean that you are updating too much in one go. Typical values are around 64 to 256 voxels.

  • Use a larger cell size. A lower cell size will give better quality graphs, but it will also be slower to scan.

The graph updates will be offloaded to worker threads as much as possible.

See

Large worlds

Public Methods

UpdateGraph (async=true)

Updates the graph asynchronously.

Public

Public Variables

graph

Graph to update.

Public
graphIndex

Index for the graph to update.

Public
target

Graph will be moved to follow this target.

Public
updateDistance

Grid graphs will be updated if the target is more than this number of nodes from the graph center.

Public
updatingGraph

True while the graph is being updated by this script.

Public

Private/Protected Members

Awake ()
Protected
OnDisable ()
Private
OnUpgradeSerializedData (migrations, unityThread)

Handle serialization backwards compatibility.

Protected
RecastGraphTileShift (graph, targetCenter)
Private Static
Reset ()

Handle serialization backwards compatibility.

Protected
Start ()
Private
Update ()

Update is called once per frame.

Private
UpdateGridGraph (graph, async)
Private
UpdateRecastGraph (graph, delta, async)
Private
UpgradeSerializedData (isUnityThread)
Protected
