StartEndModifier Class Reference

Adjusts start and end points of a path. More...

Detailed Description

Adjusts start and end points of a path.

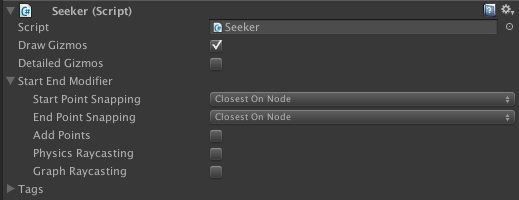

This modifier is included in the Seeker component and is always used if you are using a Seeker. When a path is calculated the resulting path will only be the positions of the nodes it passes through. However often you may not want to navigate to the center of a specific node but instead to a point on the surface of a node. This modifier will adjust the endpoints of the path.

Public Types
enum	Exactness {   SnapToNode, Original, Interpolate, ClosestOnNode,   NodeConnection }
	Sets where the start and end points of a path should be placed. More...

Public Member Functions
override void	Apply (Path _p)
	Main Post-Processing function. More...
Public Member Functions inherited from PathModifier
void	Awake (Seeker seeker)
void	OnDestroy (Seeker seeker)
virtual void	PreProcess (Path path)

Public Attributes
bool	addPoints
	Add points to the path instead of replacing them. More...
System.Func< Vector3 >	adjustStartPoint
	Will be called when a path is processed. More...
Exactness	exactEndPoint = Exactness.ClosestOnNode
	How the end point of the path will be determined. More...
Exactness	exactStartPoint = Exactness.ClosestOnNode
	How the start point of the path will be determined. More...
LayerMask	mask = -1
bool	useGraphRaycasting
	Do a straight line check from the node's center to the point determined by the Exactness. More...
bool	useRaycasting
	Do a straight line check from the node's center to the point determined by the Exactness. More...
Public Attributes inherited from PathModifier
Seeker	seeker

Protected Member Functions
Vector3	GetClampedPoint (Vector3 from, Vector3 to, GraphNode hint)

Properties
override int	Order [get]
Properties inherited from PathModifier
abstract int	Order [get]
	Modifiers will be executed from lower order to higher order. More...
Properties inherited from IPathModifier
int	Order [get]

Private Member Functions
Vector3	Snap (ABPath path, Exactness mode, bool start, out bool forceAddPoint)

Private Attributes
List< GraphNode >	connectionBuffer
System.Action< GraphNode >	connectionBufferAddDelegate

Member Enumeration Documentation

Exactness

enum Exactness

strong

Sets where the start and end points of a path should be placed.

Enumerator
SnapToNode	The point is snapped to the position of the first/last node in the path.
Original	The point is set to the exact point which was passed when creating the path request.
Interpolate	The point is set to the closest point on the line between either the two first points or the two last points. Usually you will want to use the NodeConnection mode instead since that is usually the behaviour that you really want. This mode exists mostly for compatibility reasons. Deprecated: Use NodeConnection instead.
ClosestOnNode	The point is set to the closest point on the surface of the node. Note that some node types (point nodes) do not have a surface, so the "closest point" is simply the node's position which makes this identical to #Exactness.SnapToNode
NodeConnection	The point is set to the closest point on one of the connections from the start/end node.

Member Function Documentation

Apply()

override void Apply ( Path  path )

virtual

Main Post-Processing function.

Implements PathModifier.

GetClampedPoint()

Vector3 GetClampedPoint ( Vector3  from, Vector3  to, GraphNode  hint  )

protected

Snap()

Vector3 Snap ( ABPath  path, Exactness  mode, bool  start, out bool  forceAddPoint  )

private

Member Data Documentation

addPoints

bool addPoints

Add points to the path instead of replacing them.

If for example exactEndPoint is set to ClosestOnNode then the path will be modified so that the path goes first to the center of the last node in the path and then goes to the closest point on the node to the end point in the path request.

If this is false however then the relevant points in the path will simply be replaced. In the above example the path would go directly to the closest point on the node without passing through the center of the node.

adjustStartPoint

System.Func<Vector3> adjustStartPoint

Will be called when a path is processed.

The value which is returned will be used as the start point of the path and potentially clamped depending on the value of the exactStartPoint field. Only used for the Original, Interpolate and NodeConnection modes.

connectionBuffer

List<GraphNode> connectionBuffer

private

connectionBufferAddDelegate

System.Action<GraphNode> connectionBufferAddDelegate

private

exactEndPoint

Exactness exactEndPoint = Exactness.ClosestOnNode

How the end point of the path will be determined.

See also

Exactness

exactStartPoint

Exactness exactStartPoint = Exactness.ClosestOnNode

How the start point of the path will be determined.

See also

Exactness

mask

LayerMask mask = -1

useGraphRaycasting

bool useGraphRaycasting

Do a straight line check from the node's center to the point determined by the Exactness.

See also

useRaycasting

Version

Since 4.1 this field only has an effect for the Exactness mode Original because that's the only one where it makes sense.

useRaycasting

bool useRaycasting

Do a straight line check from the node's center to the point determined by the Exactness.

There are very few cases where you will want to use this. It is mostly here for backwards compatibility reasons.

Version

Since 4.1 this field only has an effect for the Exactness mode Original because that's the only one where it makes sense.

Property Documentation

Order

override int Order

get

---

The documentation for this class was generated from the following file:

• /Users/arong/Unity/a-pathfinding-project/Assets/AstarPathfindingProject/Modifiers/StartEndModifier.cs
