Drawing in 2D

How to draw in the XY or XZ 2D planes.

Sometimes all you have are some 2D coordinates. Sure, you can convert a float2 to a float3 using e.g.new float3(point.x, point.y, 0)
, but that's hardly ergonomic. To help you draw using 2D coordinates more easily you can access Draw.xy or Draw.xz.

var p1 = new Vector2(0, 1);
var p2 = new Vector2(5, 7);

// Draw it in the XY plane
Draw.xy.Line(p1, p2);

// Draw it in the XZ plane
Draw.xz.Line(p1, p2);

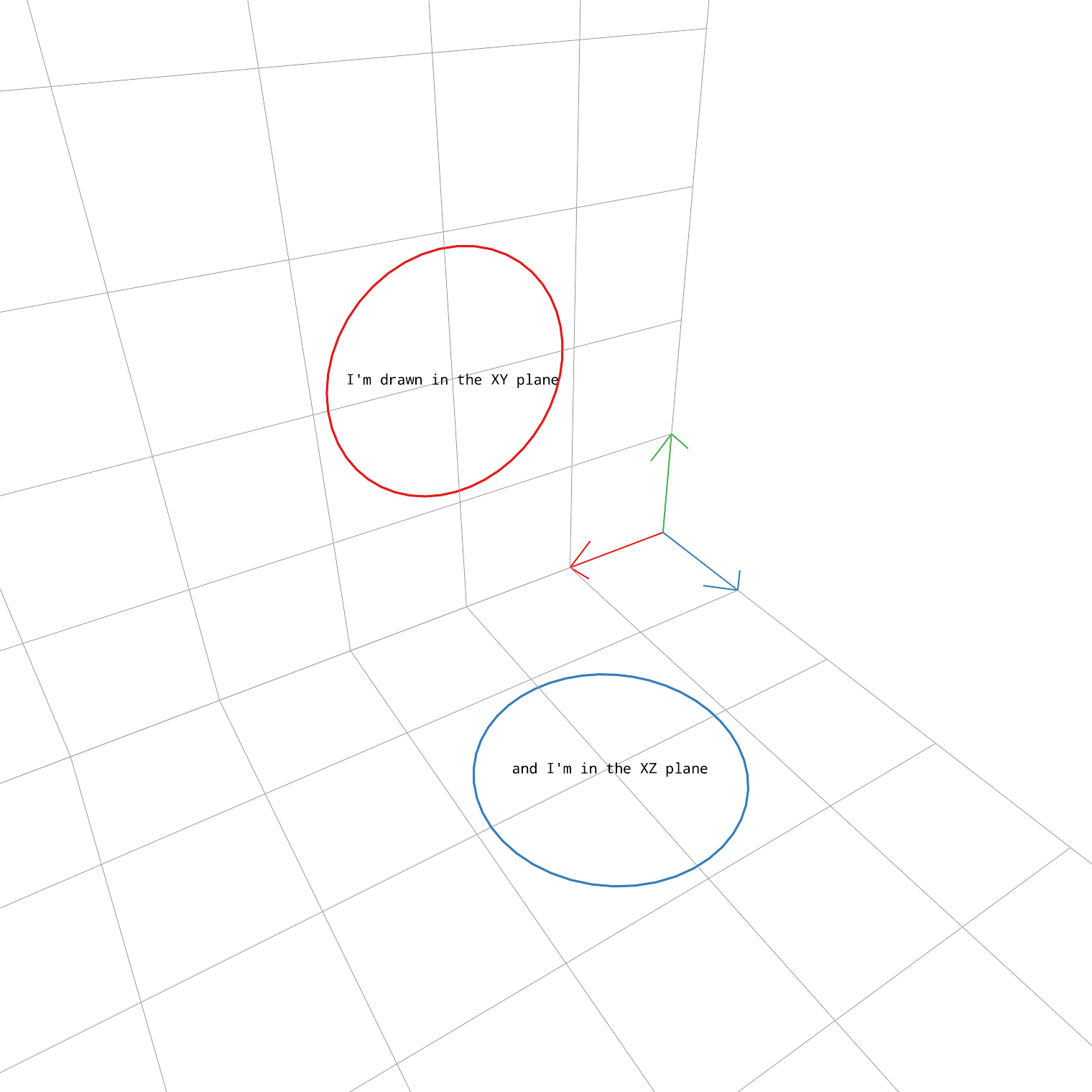

When you use Draw.xy or Draw.xz, the code will ensure reasonable defaults are used for those planes. For example, when you draw a circle using Draw.xy, the circle will actually lie in the XY plane. This applies to many things, for example the orientation of arrows, circles, grids, etc.

Draw.xy.Circle(new Vector2(2, 2), 0.9f, Palette.Red);
Draw.xy.Label2D(new Vector2(2, 2), "I'm drawn in the XY plane", 20, LabelAlignment.Center, Color.black);

Draw.xz.Circle(new Vector2(2, 2), 0.9f, Palette.Blue);
Draw.xz.Label2D(new Vector2(2, 2), "and I'm in the XZ plane", 20, LabelAlignment.Center, Color.black);
