Class RadiusModifier Extends MonoModifier
Radius path modifier for offsetting paths.

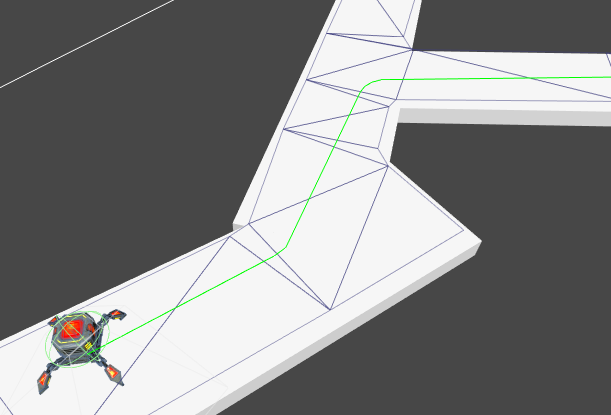

The radius modifier will offset the path to create the effect of adjusting it to the characters radius. It gives good results on navmeshes which have not been offset with the character radius during scan. Especially useful when characters with different radiuses are used on the same navmesh. It is also useful when using rvo local avoidance with the RVONavmesh since the RVONavmesh assumes the navmesh has not been offset with the character radius.
This modifier assumes all paths are in the XZ plane (i.e Y axis is up).
It is recommended to use the Funnel Modifier on the path as well.
Also check out the howto page "Using Modifiers".
This is an A* Pathfinding Project Pro feature only. This function/class/variable might not exist in the Free version of the A* Pathfinding Project or the functionality might be limited.
The Pro version can be bought here
Added in 3.2.6
Public Methods
Public Static Methods
Public Variables
Modifiers will be executed from lower order to higher order.
Detail of generated circle segments.
Radius of the circle segments generated.
